Forza Telemetry

External telemetry dashboard for Forza Horizon.

Features

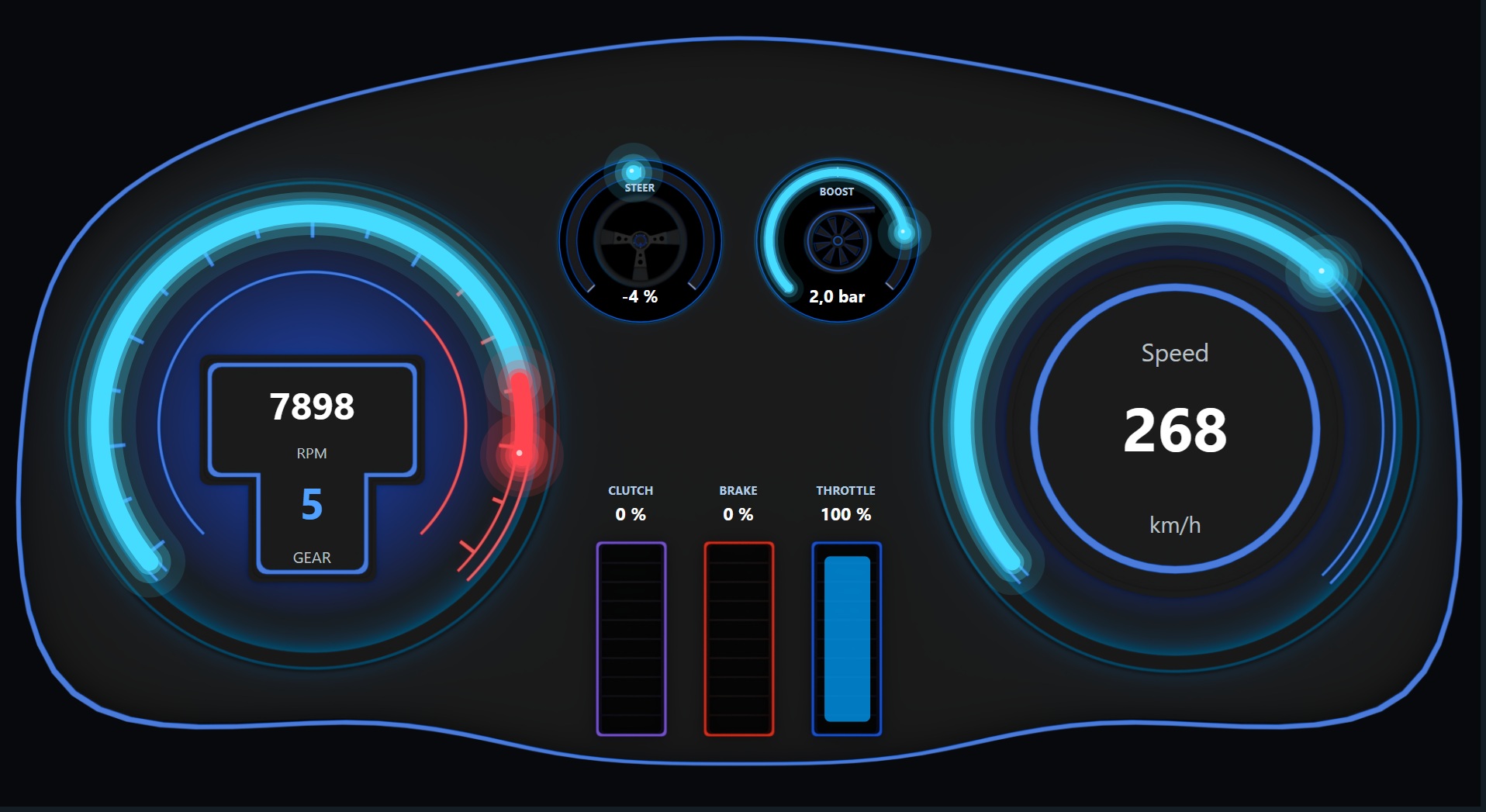

Vehicle dashboard

Displays RPM, speed, gear, steering, boost, throttle, brake, and clutch telemetry.

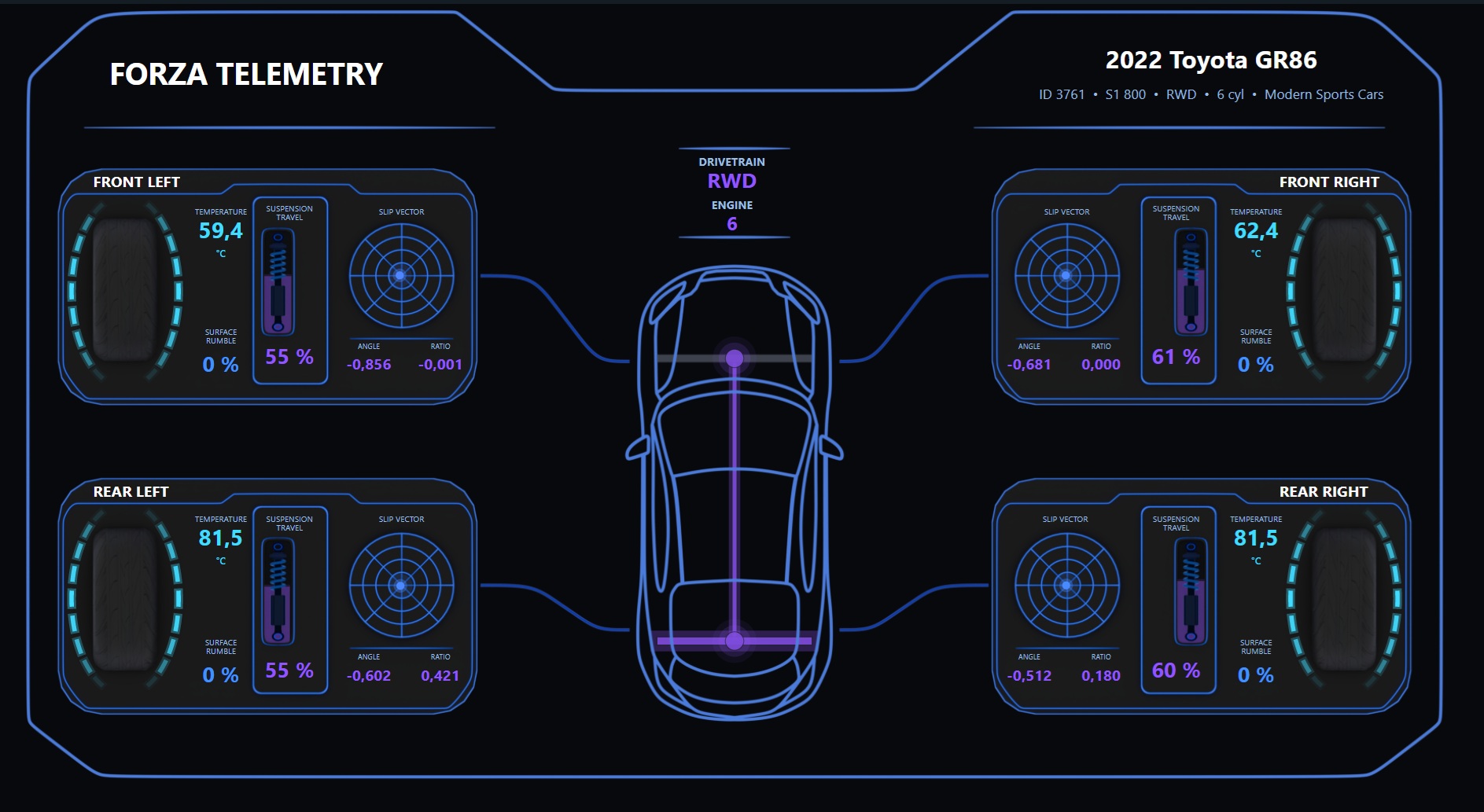

Vehicle telemetry

Displays tire temperatures, suspension travel, slip vectors and vehicle information.

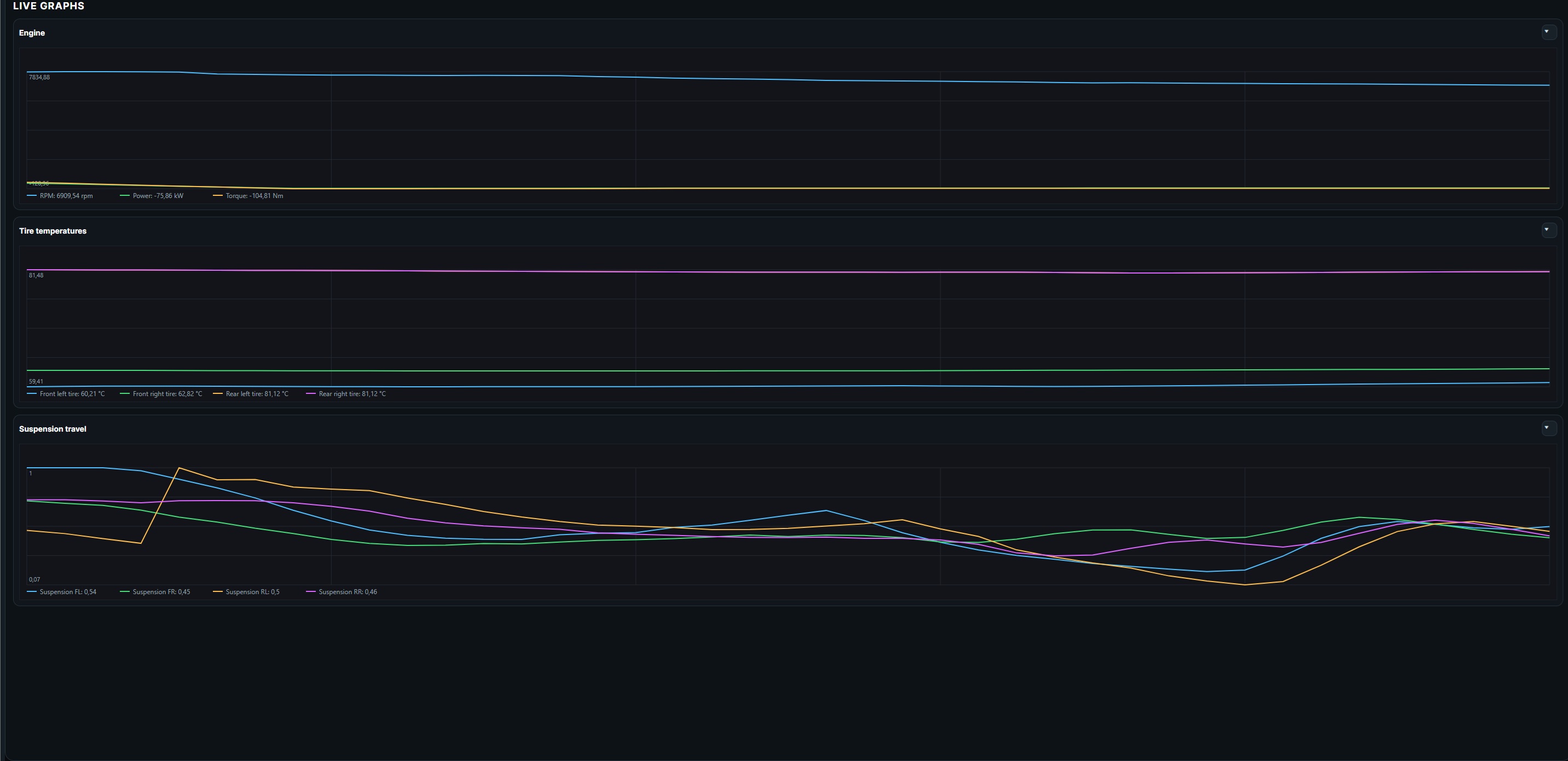

Live graphs

Displays real-time telemetry history for engine data, tire temperatures, and suspension travel.

Installation

1. Open the Releases page.
2. Download ForzaTelemetry-v1.0.0-win-x64.zip.
3. Extract the entire ZIP file to a folder.
4. Open the extracted folder.
5. Run ForzaTelemetry.exe.

The application is self-contained, so no separate .NET installation should be required.

Do not run the application directly from inside the ZIP file.

Forza setup

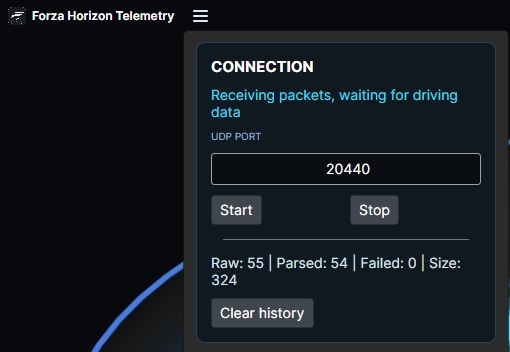

1. Start the telemetry application

Open Forza Telemetry.

Open the menu from the top-left corner.

Use the default UDP port or enter another port, then press Start.

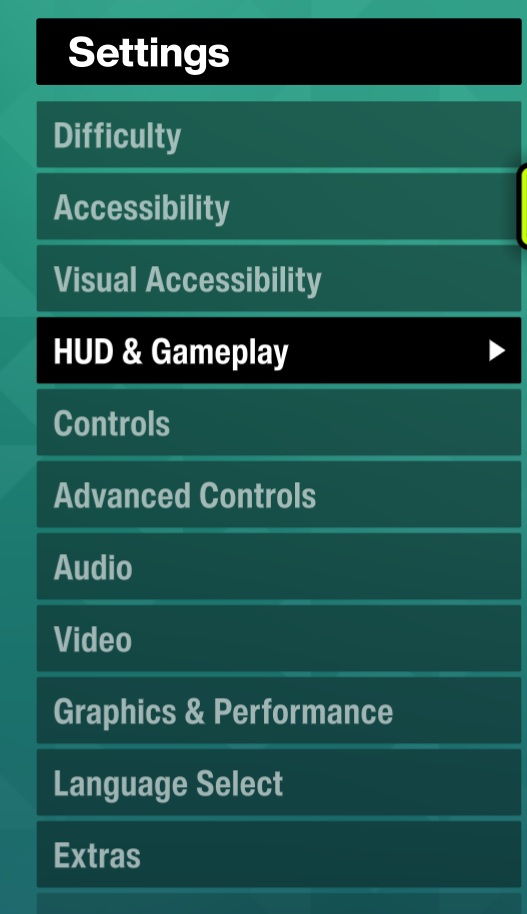

2. Open the Forza settings

In Forza Horizon, open Settings and select HUD & Gameplay.

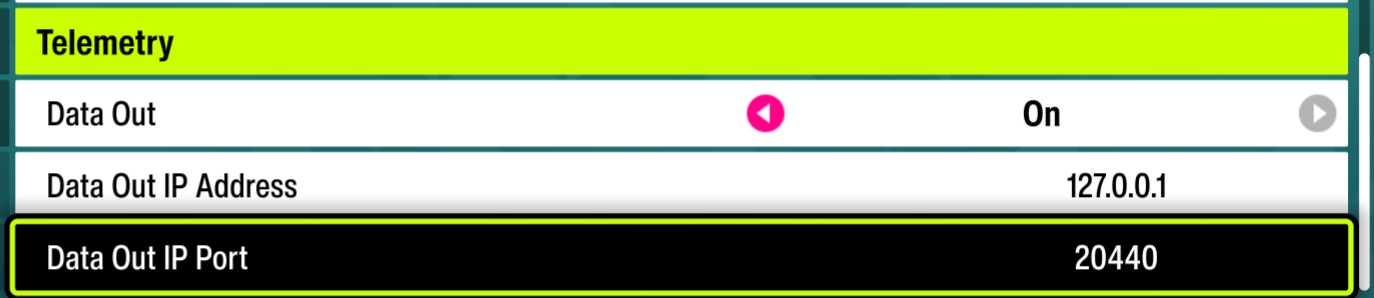

3. Enable Data Out

Find the telemetry or Data Out settings and configure:

Data Out: On
Data Out IP Address: 127.0.0.1
Data Out IP Port: 20440

The port must match the port configured in Forza Telemetry.

Known issues

• The rear-right tire temperature may duplicate the rear-left tire temperature. This appears to be caused by the telemetry data provided by the game.

Disclaimer

This is an unofficial community application and is not affiliated with or endorsed by Microsoft, Xbox, Playground Games, Turn 10 Studios, or the Forza franchise.

License

This project is licensed under the MIT License.
